Argos 500

3D forward looking sonar out to 500 meters range

Explore Safely

The Argos 500 Forward Looking Sonar system is the ideal solution for mid-sized vessels ranging from 30 - 50+ meters (90 - 160+ feet).

  • Detects objects in water column up to 500 meters ahead

  • Operational speeds up to 20 knots

  • Designed for easy fixed installation



Designed and Manufactured in USA

Our commercial grade products have been trusted worldwide since 2005.

  • Transducer Module - Front Face

    Robust Array Face

    Tough, marine grade urethane encapsulates the transmit and receive arrays.

    A stainless steel housing protects the internal electronics against the harsh marine environment.

  • Transducer Module - Rear

    Wet Mateable Connector

    An underwater wet mateable connector on the rear of the unit allows for installation and removal by diver while the vessel is afloat.

    Minimal maintenance is needed to keep the system working flawlessly.

  • Transducer Module installed

    Secure Installation

    Twelve mounting bolts secure the unit to the fairing integrated into the vessel’s hull. A fixed installation means no moving parts and is suitable for both new build and refit applications.

    FarSounder’s fairing designs are suitable for steel, aluminum, and composite hulls.

Experience a Whole New Vision Underwater

Argos 500 Detailed Specifications

Range Settings

100m, 200m, 500m


Field of View

120° up to 200m range
90° up to 500m range


Operational Speed

Up to 20 knots


Chart Overlay

S57/S63 Included

i4Insight Professional+ Optional
(formerly C-Map Professional+)

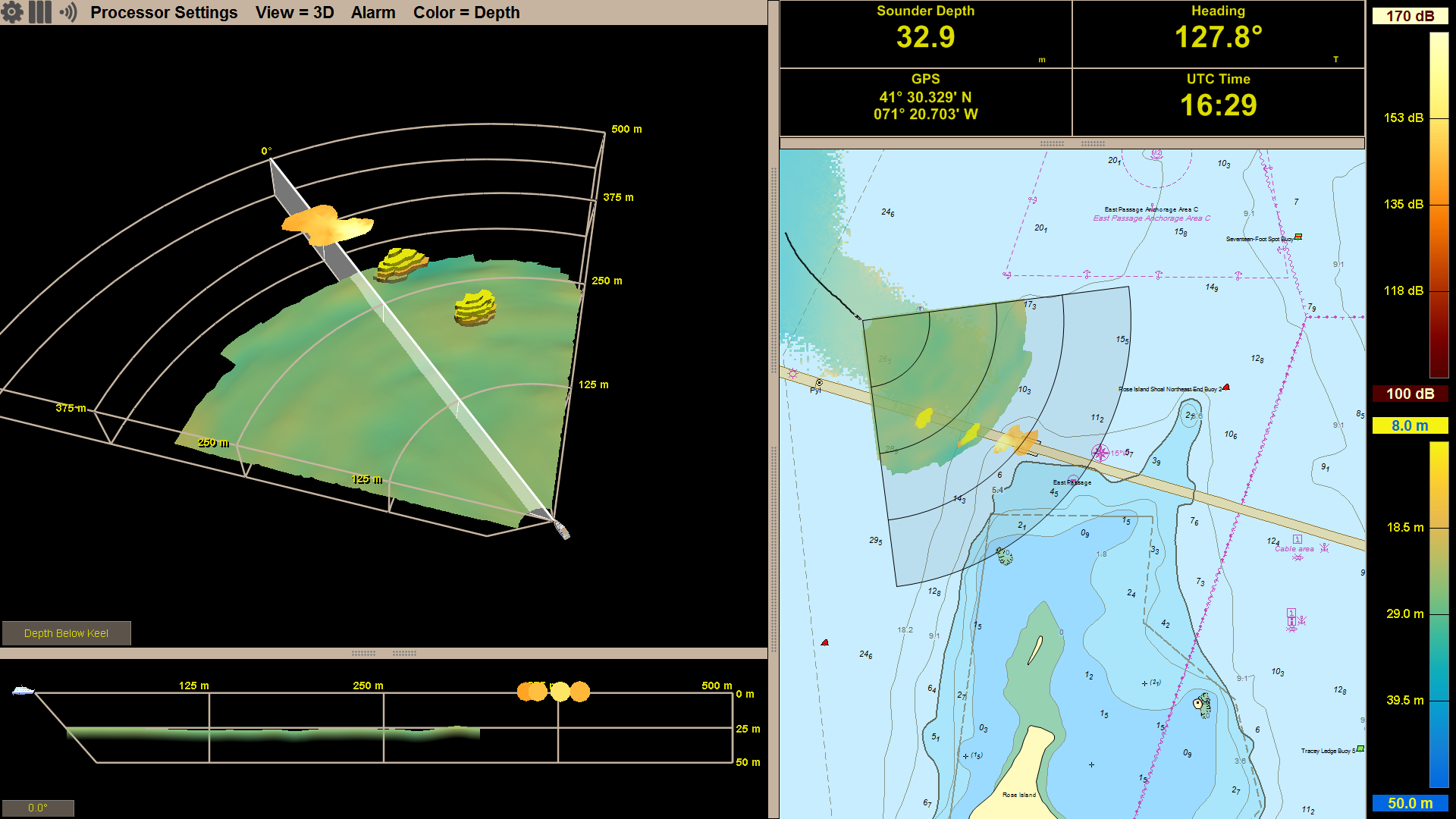

3D Forward Looking Display with True Target Motion™

Yes


Local History Mapping™

Yes


Bottom Mapping Range


Maximum Depth Detection


Refresh Rage

~3 Hz to ~.75 Hz Depending Upon Range


Operating Frequency

61 kHz


Maximum Output Power

<1500 Wrms


Angular Accuracy

~1.6°


Roll/Pitch Stabilization

+/- 20°


Multi-ping Target Stabilization

Yes


User Defined Alarms

Audible/Visual/Both


Input Power Requirements

110/220 Vac, 50/60 Hz @ ~100 W


Operating System

Windows 10


Direct Integration into 3rd Party Systems

Wärtsilä NACOS Platinum™
Team Italia SRL I-Bridge™
QPS Qinsy™


SDK

Available
